How To Use Feet In Autocad. So, today i am here with 3 methods for converting feet inches drawing to meters. Start a new drawing using the acad.dwt template.

Dimensioning in Architectural Inches in a Decimal Feet from www.landfx.com

We can see that the unit is already defined correctly. In regular autocad one would use the alternate units feature found in their dimension style. Enter an angle for the dimension line.

Source: www.youtube.com

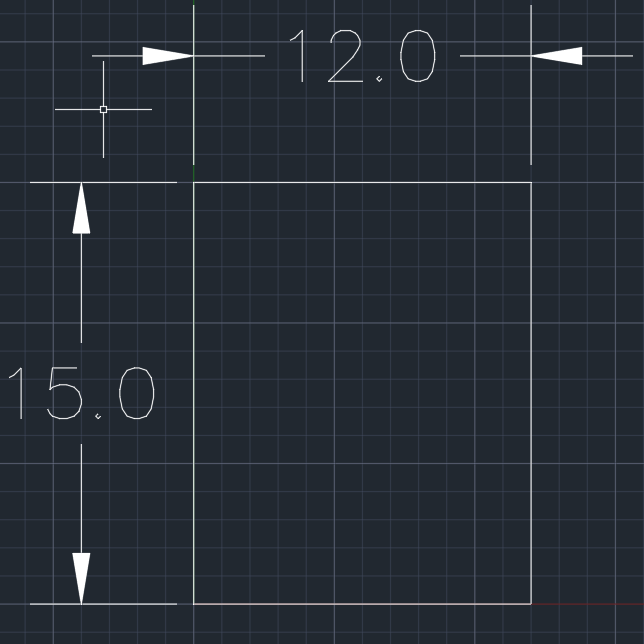

Select the dimension style in use. Click to place the dimension line.

Source: www.pinterest.com

Enter the insert command (or classicinsert in autocad. How do i change units in feet and inches in autocad?

Source: knowledge.autodesk.com

How do i use inches in sketchup? When the measurement is 0’8″ autocad will show 8″.

Source: forums.autodesk.com

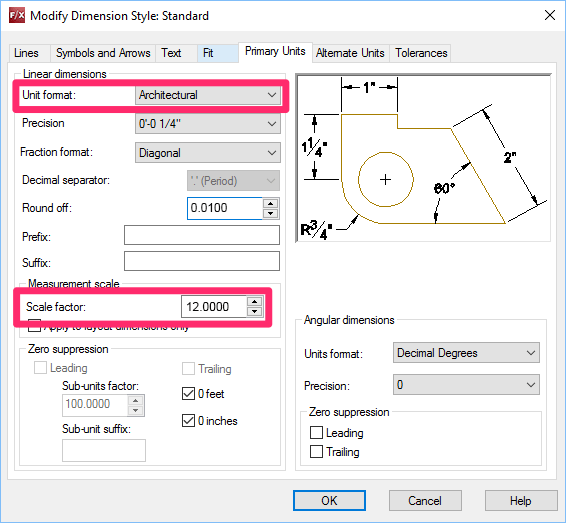

The drawing is set to use decimal units instead of architectural. Select the dimension style in use.

Source: www.pdoteam.com

Don't use dwgunits for autocad plant 3d. Click annotate tab dimensions panel linear.

Source: paulaguine1959.blogspot.com

Now the dimensions in this style will show as inches. Deselect all options so the drawing will go in at 0,0, no scaling, and no rotation.

Source: paulaguine1959.blogspot.com

How do i change units in feet and inches in autocad? If the “set autocad variables to match” box is checked, then setting the drawing to a coordinate system (ex.

Source: www.youtube.com

Select the dimension style in use. This (‘) symbol is used to enter the feet.

Select “Decimal” For Type And “Feet” For Insertion Scale.

Setting your drawing units to architectural affects any command that requires a length or size, as well as commands that measure. Select decimal for type and feet for insertion scale. Once there, change “units” to “millimeters” or “meters”.

Enter The Insert Command (Or Classicinsert In Autocad 2020 And Newer).

Start a new drawing using the acad.dwt template. Trailing suppresses trailing zeros in all decimal dimensions. Select decimal for type and feet for insertion scale.

Use The Insert Command In This Example The Components Will Be Converted From Inches To Feet.

You lot can admission it from autocad carte du jour> drawing utilities> units. Using imperial unit of measurement is painful for me. Click to place the dimension line.

So, Today I Am Here With 3 Methods For Converting Feet Inches Drawing To Meters.

You can also set your desired precision in fractions of an inch. Enter the insert command (or classicinsert in autocad 2020 and newer). If the “set autocad variables to match” box is checked, then setting the drawing to a coordinate system (ex.

Hello Home Cad Members, Many Of You Were Asking Me How To Convert Feet Inches Drawing To Meter In Autocad.

If you use feet inch, it will be mm. Set unit format to decimal. How do i use inches in sketchup?
