How To Change Dimension In Autocad. Click the text grip on a linear dimension and use the grip menu to adjust the text location. In modify dimension style dialog box, fit tab, under scale for dimension features:

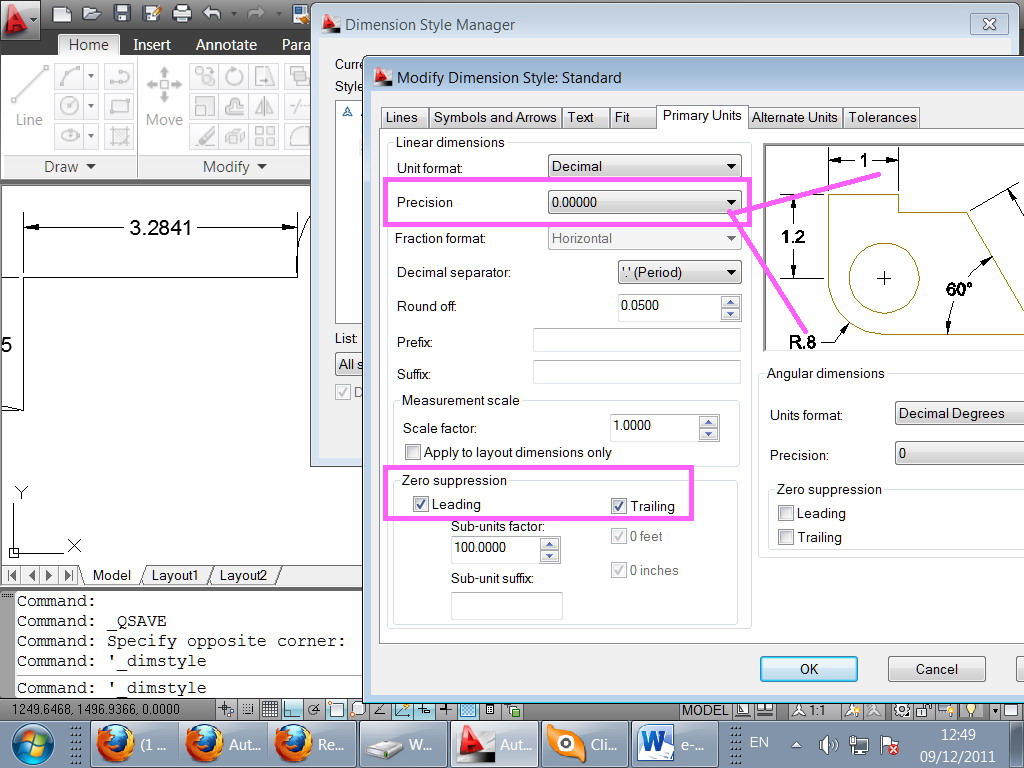

Solved Changing the “Precision” of “Linear Dimension” in from forums.autodesk.com

You can use stretch on dimensions and the dimension text will update automatically (unless you replaced <> with text). You can also use grip editing techniques to stretch. In the suffix box, add the inch symbol.

Source: www.youtube.com

How do i change dimension size in autocad? Change the drawing units from millimeter to meter and click ok.31 oct.

Source: www.doovi.com

You can also use grip editing techniques to stretch. Enter an angle for the dimension line.

Source: www.youtube.com

Do one of the following:click home tabannotation panel (expanded)dimension style. In the drawing setup dialog box, click the units tab.

Source: www.cadtutor.net

In modify dimension style dialog box, fit tab, under scale for dimension features: Click to see full answer.

Source: www.youtube.com

In the suffix box, add the inch symbol. Click format menu > drawing setup.

Source: knowledge.autodesk.com

How do i change dimension units in autocad? Autocad scales the distance between objects as well as the objects themselves.

Source: www.pinterest.com

Click the text grip on a linear dimension and use the grip menu to adjust the text location. There are many ways to edit existing dimensions & the method you choose will depend on the type of change & number of dimensions.

Source: www.youtube.com

Enter an angle for the dimension line. Click annotate tab dimensions panel linear.

To Change The Precision Of Primary Units, Specify The Number Of Decimals To Round Off To, In The Box Adjacent To Power Dimensioning Tab Dim Text Panel Primary Precision Find.

Click on ‘manage dimension styles…’ in autocad®. There are many ways to edit existing dimensions & the method you choose will depend on the type of change & number of dimensions. Autocad scales the distance between objects as well as the objects themselves.

How Do I Change Text Size In Autocad?

Use command line prompts to specify a different base point or copy the dimension line. Dimension style manager in autocad®. You can use stretch on dimensions and the dimension text will update automatically (unless you replaced <> with text).

Select The Dimension Style In Use.

Click format menu > drawing setup. Change the drawing units from millimeter to meter and click ok.31 oct. If needed, change the line justification or the position of the line.

In The Edit Dimension Dialog Box, Edit The Dimension Text.

In this tutorial we will learn how to make your autocad dimension text visible.#autocaddimensiontextsize #autocadwelcome to thengineersguide, here we teach t. How do i change dimension size in autocad? Set the precision to be displayed.

Under Measurement Scale, Set The Scale Factor To 1.

Click to place the dimension line. In the dimension style manager, select the style you want to change. In the dimension style manager, styles list, select the style you want to change.
